Place of Origin : Shandong, China
Brand Name : leadshine
Model Number : 860H
MOQ : 10
Price : $33.60-33.80
Warranty : 3months-1year
Output Power : 100W
For Use With : plc
Ingress Protection : IP40
Current : 10A
Voltage : AC 220V, 220V
Product name : Leadshine driver
Condition : GOOD
Application : Industrial Automation
Control Mode : Pulse + Direction
Type : Driver
Motor Type : servo
Packaging Details : Standard Package
Delivery Time : 20-27 days

| 1.Electrical index | Minimum value | Typical value | Maximum value | unit | |||
| Output current (peak) | 2.4 | - | 7.2 | A | |||
| Input voltage | 20 | - | 70 | VAC | |||
|  | 30 |  | 100 | VDC | |||
| Control signal input current | 7 | 10 | 20 | mA | |||
| Step pulse frequency | 0 |  | 200 | kHz | |||
| Insulation resistance | 50 | - | - | MΩ | |||
| 2.Use environment and parameters |  |  |  |  | |||
| Cooling mode | Natural cooling or external radiator |  |  |  | |||
| Use environment | Occasion of use |  | Avoid dust, oil mist and corrosive gases |  | |||
|  | Temperature |  | 0℃-40℃ |  | |||
|  | Humidity |  | 40-90%RH |  | |||
|  | Vibration |  | 10-55Hz/0.15mm |  | |||
| Storage temperature | -20℃-60℃ |  |  |  | |||
| Weight | 600g |  |  |  | |||






| 1.Working current setting |  |  |  |  | ||||
| Output peak current | Output reference current | SW1 | SW2 | SW3 | ||||
| 2.40A | 2.00A | ON | ON | ON | ||||
| 3.08A | 2.57A | OFF | ON | ON | ||||
| 3.77A | 3.14A | ON | OFF | ON | ||||
| 4.45A | 3.71A | OFF | OFF | ON | ||||
| 5.14A | 4.28A | ON | ON | OFF | ||||
| 5.83A | 4.86A | OFF | ON | OFF | ||||
| 6.52A | 5.43A | ON | OFF | OFF | ||||
| 7.20A | 6.00A | OFF | OFF | OFF | ||||
| 2.Microstep subdivision setting |  |  |  |  | ||||
| Number of steps/rotation | SW5 | SW6 | SW7 | SW8 | ||||
| 400 | ON | ON | ON | ON | ||||
| 800 | OFF | ON | ON | ON | ||||
| 1600 | ON | OFF | ON | ON | ||||
| 3200 | OFF | OFF | ON | ON | ||||
| 6400 | ON | ON | OFF | ON | ||||
| 12800 | OFF | ON | OFF | ON | ||||
| 25600 | ON | OFF | OFF | ON | ||||
| 51200 | OFF | OFF | OFF | ON | ||||
| 1000 | ON | ON | ON | OFF | ||||
| 2000 | OFF | ON | ON | OFF | ||||
| 4000 | ON | OFF | ON | OFF | ||||
| 5000 | OFF | OFF | ON | OFF | ||||
| 8000 | ON | ON | OFF | OFF | ||||
| 10000 | OFF | ON | OFF | OFF | ||||
| 20000 | ON | OFF | OFF | OFF | ||||
| 40000 | OFF | OFF | OFF | OFF | ||||










|   |

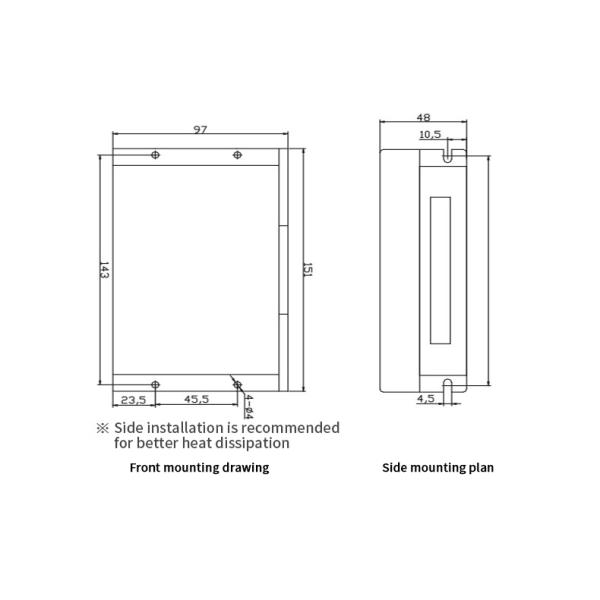

| Two Phase Stepper Motor Driver 220V DMA860H DM860H For Engraving Machines Images |
